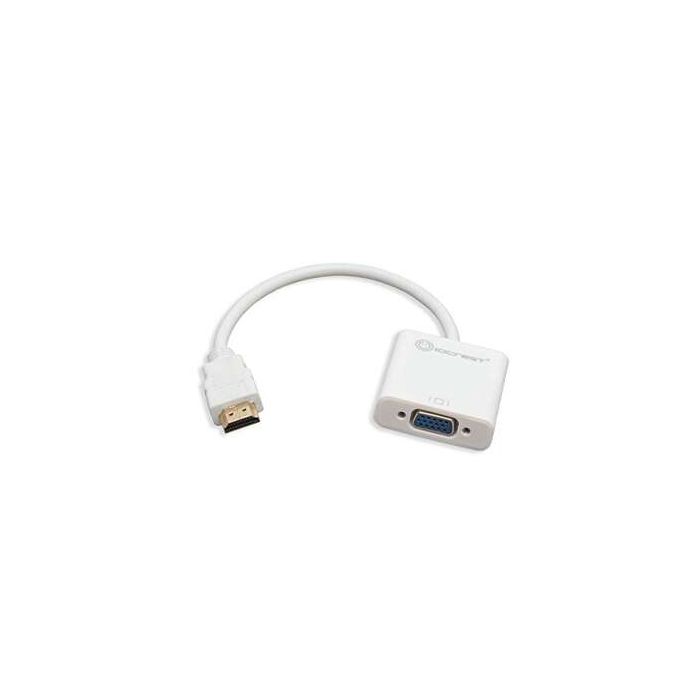

1 x HDMI to VGA Adapter with Audio Output via 3.5mm Jack. Convert HDMI signals into VGA outputs at a maximum conversion rate of 200 MHz with IIS or SPDIF audio output. The HDMI Receiver integrated is compliant with HDMI 1.4b. The DACs are based on current source architecture. And the VGA output meet VESA VSIS v1r2 clock jitter target. Supports HDMI Standard Norm. HDMI Receiver compliant with HDMI 1.4 specification. Analog RGB output for VGA with Triple 9-bit DAC up to 200MHz pixel rate. Supports VESA and CEA timing standards up to WUXGA 1920x1200@60MHz and 1920x1080@60MHz. On-chip encoder supports 2 channel IIS/S/PDIF audio output. Integrated EDID buffer. VGA/HDMI connection detection supported. Supports Auto Power Saving mode and low stand-by current. Supports Audio via Jack Stereo Cable. Plug and Play, Driverless Installation. Device is 10.3in Long (Cable is 6.5in). Audio Cable is 18.4in Long. Package Includes: 1 x HDMI to VGA Adapter. 1 x Male to Male Audio Jack. Hardware Requirement: 1 x HDMI port. 1 x VGA Male connection. 1 x Audio port (optional).
Supports HDMI standard Norm
Complaint with HDMI 1.4 Specification
Analog RGB output for VGA with Triple 9-bit DAC up to 200Mhz Pixel rate.
Supports VESA and CEA timing standards up to WUXGA 1920x1200at60MHz and 1920x1080at60MHz.
On-chip encoder supports 2 Channel I is/s/PDIF Audio output
