Eyoyo 12" Inch TFT LCD Monitor with AV HDMI BNC VGA Input 1366x768 Portable Mini HD Color Screen Display with Built-in Speaker
Product Description
Investing in home security is a vital investment, getting the cameras is one thing another significant investment will be having the Best CCTV monitor to compliment your camera system.
Eyoyo CCTV monitors come at different sizes, types, and prices.
This model is a portable 11.6 inch monitor with a high resolution of 1366 x 768. You will experience a bright and sharp image from a wide viewing angle of about 160 degrees horizontally and 140 degrees vertically.
The Aspect ratio of 16:9, a brightness level of 350 cd/ m2 and a contrast ratio of 600:1. You will experience more accurate color presentation when it comes to interconnectivity with other devices such as PCs, TV, camera and DVD players or writers...
Package Contents
- 1 * 11.6 Inch TFT Color LCD Monitor
- 1 * BNC Cable
- 1 * Power Supply Adapter
- 1 * User Manual
- 1 * Base
Specification
- Screen Size: 11.6 inch
- Aspect Ratio: 16:9
- Screen Resolution: 1366(H) * 768(V) pixels
- Screen Brightness: 350 cd/m2
- Screen Contrast: 600:1
- View Angle: H-160 degree, V-140 degree
- Response Time: 8-12ms
- Video Input: VGA, BNC, HDMI, AV
- Function:Video System: PAL, NTSC
- Power Supply: DC 12V, 2A
1366*768 High Resolution
- It features 16:9 TFT-LCD screen display with 1366*768 full HD resolution,and 350cd/㎡ brightness,600:1 high contrast ratio
- Compared to 800x600 resolution, this monitor display color is more precise and clear
160°Wide Viewing Angle
Viewing angle up to H-160 degree,V-140 degree,display clear and exquisite image from different angles
|
|
|
|
|---|---|---|

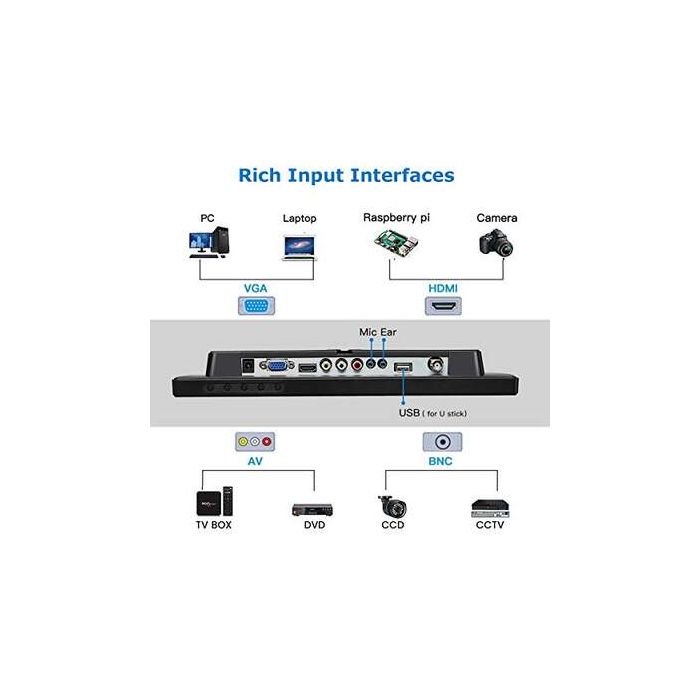

HDMI PORTHDMI Port allows for connectivity to Raspberry Pi, Cameras, TV, DVD and PCs that support HDMI connectivity |
VGA PORTAny PC with an VGA port can be connected to this Eyoyo LCD monitor and used as a mini PC monitor |
BNC PORTThis port is vital if you intend to use this monitor for security monitoring purposes |
Troubleshooting steps:
- 1. It was not the type of item that would hook up to my device
Answer:This one have AV HDMI BNC VGA port,please check and make sure your device support this kind of ports.
- 2. The monitor did not meet the requirements for the installation location.
Answer: please check your installation location if suitable then buy it
- 3. Does not work defective the screen is not working
Answer:please check it can’t turn on or don’t have image ,this one has AV HDMI BNC VGA port,if you connect by HDMI ,please match the HDMI mode ,the user manual has the details,please read it.
- 4. Doesn't work as expected. Slows down computer when surfing on websites.
Answer:This just a small portable monitor,it is the first time to hear that ,we need the product to check the detail.
- 5. Monitor shuts down and restarts itself every 10-30 minutes.
Answer: close the sleeping mode fuction.
|
|
|
|---|---|---|
| 2K Portable Monitor 12 inch | Small Monitor 8 inch | |
| Display | 12 inch | 8 inch |
| Resolution | 2160x1440 | 1280x720 |
| Aspect Ratio | 15:10 | 16:9 |
