Deyowo 75 Inch Interactive 10 Points Infrared IR Touch Screen Overlay Frame Free Driver
Product Description
Product main image
Product description
1-This item is Deyowo 75 inch 10 points interactive infrared touch screen frame overlay, design and use for interactive board, touch LCD monitor, touch display TV. Touch Kiosks, Touch Digital Signage, Whiteboard, Exhibition and etc.
2-The out frame of Infrared Touch using alluminum material, product is strong and durabel, not including glass.
3-The infrared touch screen is anti-sunshine, there are no light interference, no drift even if it be uesed under the sunshine directly.
4-This item just only matching 75 inch display, we showed the detail dimension drawing on webpage, you can check if your display can match this item.
5-This item is only touch frame for sale which be without glass, the installation is very simple and very easy, we will provide Installation Manual.
6-The infrared touch screen is Free driver for Windows, Android and Linux. Support Mac iOS with HID driver, you can sent message to us on Amazon and get it.
7-Many Android TV Box model be without touch function, please inquiry TV box supplier if the box be with touch function before you order this item.
Product advantage
|
|
|
|
|---|---|---|
10 points touchSupport 10 points interactive touch, design and use for interactive board, touch LCD monitor, touch display TV. Touch Kiosks, Touch Digital Signage, Whiteboard, Exhibition and etc. |
Anti light interferenceAnti light interference function, it can run well even if it is under sunshine. |
OS support1-Driver free for Windows7, Windows8, Windows10, Native Linux and Android OS. 2-Need to install the HID driver on Mac OS 3-Does not support Smart TV Android system, Raspberry Pi |

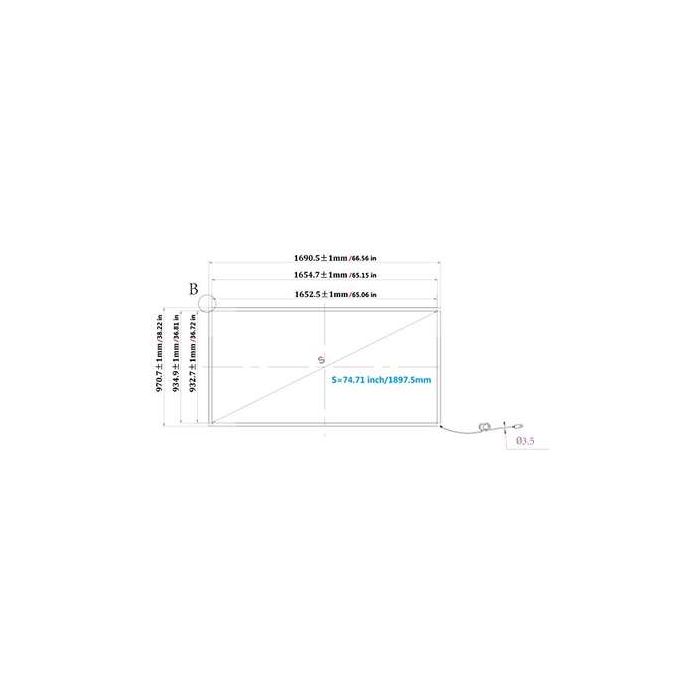

Product drawing
Produtc datasheet
DIMENSION
●Display area: L1=1652.5mm, W1=932.7mm
●Outside area: L2=1690.5mm,W2=970.7mm
S= 74.71inch (1897.5mm), match 75 inch display
●Ratio: 16:9
ElECTRICAL
●Operating Voltage: DC 4.5V ~ DC 5.5V
●Power Supply: Single USB Connection
●Power Consumption: 1.0W (200mA at DC 5V)
ENVIRONMENT
●Operating Temperature: -20°C~70°C
●Storage Temperature: -30°C~80°C
●Operating Humidity: 10%~90%RH(Non-condensing)
●Storage Humidity: 0~95%RH
Product appearance
|
|
|
|
|---|---|---|
Packing presentationPackage using strong paper tube, the inside packing list: 4 pcs touch frames; 8 screws A installation manual A screwdriver (gift) A duable-face adhesive tape (gift) |
Four frames layoutBefore you fixing the touch frames, layout the four frames like the picture. Easy and simple. |
Interface port connectingSlot design for four corner interface ports connecting, A to A, B to B, C to C and D to D. Easy and simple |
